16-Channel Logic Analyzer, 100MHz Sampling Rate USB Based with Cables, Connectors, and Software, for Semaphore Analysis and Debugging
Product details
| Management number | 220422048 | Release Date | 2026/05/03 | List Price | $30.00 | Model Number | 220422048 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Color: GreyMaterial: ABSSampling Rate and Numbers of Channel:100MHz, 3 Channels50MHz, 6 ChannelsMHz, 9 Channels16MHz, 16 ChannelsMeasurement Bandwidth: 20MHzMin. Detectable Pulse Width: 20nsMaximum Compression Depth: 10GSaSampled Data Format: txt, csv, binDecoding Data Display Format: Binary, Decimal, Hexadecimal, ASCII, ASCII and HexadecimalInput Voltage Range: -50~50VInput Impedance: 220KΩ, 12pFAdjustable Threshold Voltage: -4~4VPWM Output: x 2USB Interface: USB 2.0Standby Current: 100mAMaximum Active Current: 200mAItem Size: 95 * 55 * 23mm / 3.74 * 2.17 * 0.91inPackage Size: 25.5 * 19.5 * 5.5cm / 10.04 * 7.68 * 2.17inPackage Weight: 403g / 14.20ozPackage List：1 * Logic Analyzer with 20P Cable 1 * 9P Cable 1 * 2P Cable 20 * Connector 1 * USB 2.0 Cable (1.5m)1 * User Manual (English) Note:1. The logic analyzer and the computer have the common GND. It it's connected to not isolated inverter equipment, frequency changing equipment direct power supply equipment, the logic analyzer or even the computer may be destroyed!2. Size and color may be slightly different due to manual measurement and different light conditions. Thank you for understanding.
- Complete Kit: Includes a 16-channel logic analyzer, 20P, 9P, and 2P cables, 20 connectors, a 1.5m USB 2.0 cable, software CD, and user manual for a comprehensive analysis setup.

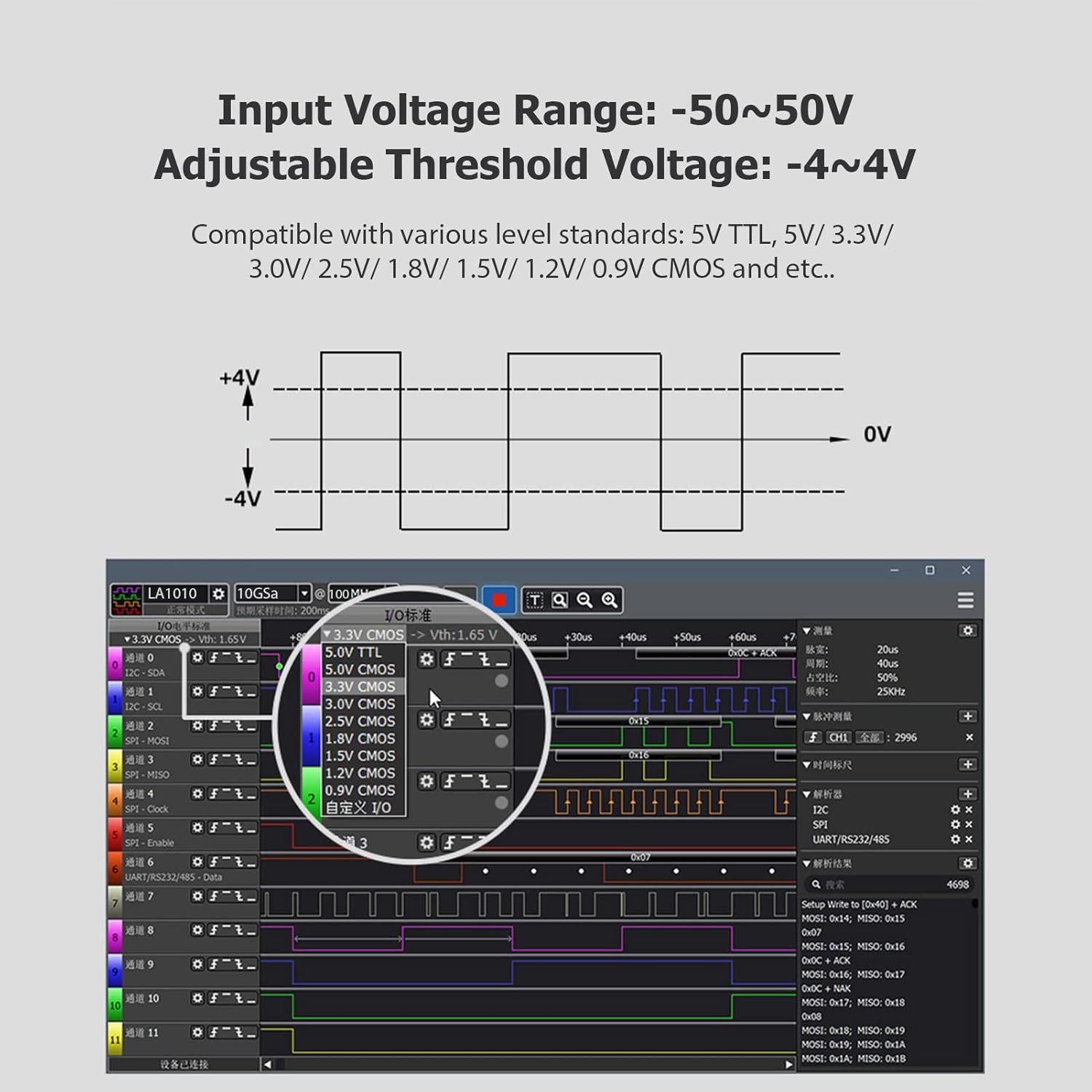

- Wide Voltage Range: Supports input voltage from -50V to +50V with an adjustable threshold of -4V to +4V, compatible with various logic levels including 5V TTL and multiple CMOS standards.
- USB 2.0 Data Transfer: Facilitates real-time data transfer to your computer with high-speed USB 2.0, ensuring efficient sampling and data analysis.
- Flexible Data Export and Display: Allows data export in formats such as TXT, CSV, and BIN. Supports decoding and display in Binary, Decimal, Hexadecimal, ASCII, and combined formats.
- Advanced Software Functions: Features multiple measurement functions within the software, with synchronized waveform and analysis result windows for streamlined data evaluation and troubleshooting.
| Item Weight | 14.9 ounces |
|---|---|
| Manufacturer | Mavaol |
| Item model number | Mavaolqphvn4t2fk |
| Package Dimensions | 10.24 x 7.87 x 2.36 inches |
